Central Sikh Temple

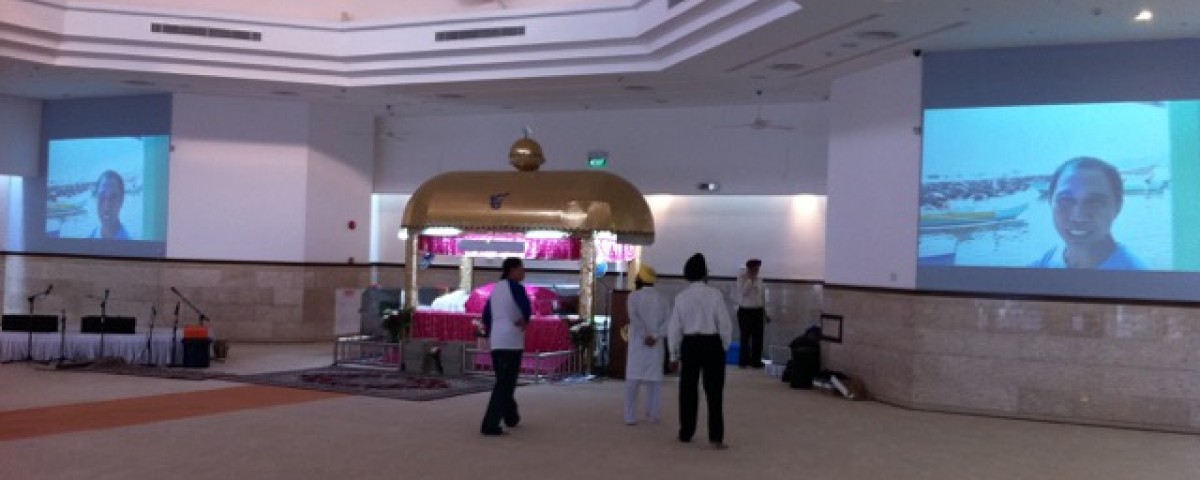

Main worship hall

Key facts

  • Project type:
    • Installed
    • House of Worship
  • Location:
    • Towner Road
  • Client:
    • Central Sikh Gurdawara
  • Brief:
    • To supply and implement a multizone networked audio sound and visual system.

  • Equipment:
    • EAW NTL720 Line array, NTS250 Subwoofer, CIS300 ceiling speakers and SMS4 surface mount speakers
      Ashly ne8250 Power amplifiers
      Mackie CFX Mixers
      Symetrix Zonemix 760 network mic panels and ARC2e panels
      Furman power conditioners and sequencers

  • Year: 2014

AV Solution for the newly revamped Central Sikh Temple

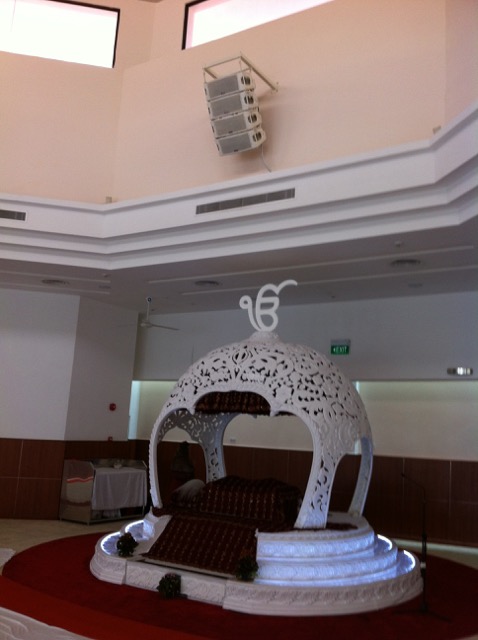

To provide a wide area of linear coverage, EAW NTL720 active line array speakers were installed in the center with a NTS250 subwoofer for LF extension. CIS300 ceiling speakers provides blind spot coverage and SMS4 speakers provided the outside area coverage. All passive speakers are powered through Ashly ne8250 nework equipped 8-channel amplifiers.
Remote ARC2e wall panels allow source selection and volume control for each zone and in areas such as the foyer and canteen, a mic input panel allows for a zone to be addressed through a independent input

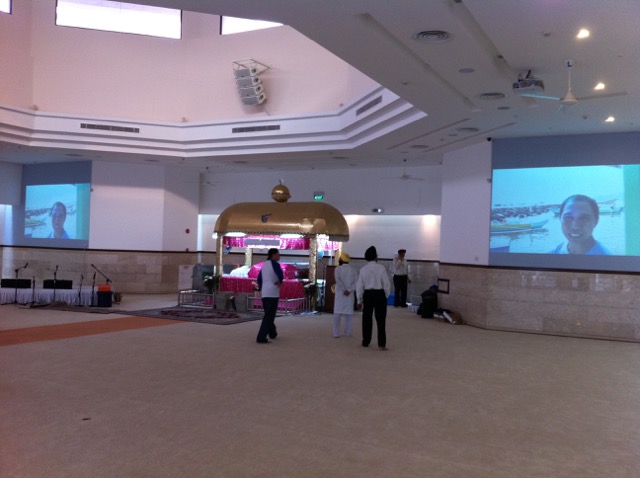

A WOWvision wireless presentation system coupled with Kramer video processing powers the 5K NEC projectors and TV screens around the temple allowing any compatible PC to project content to be projected on the screens. It also allows streaming of the camera installed to cover the proceedings over the internet.
